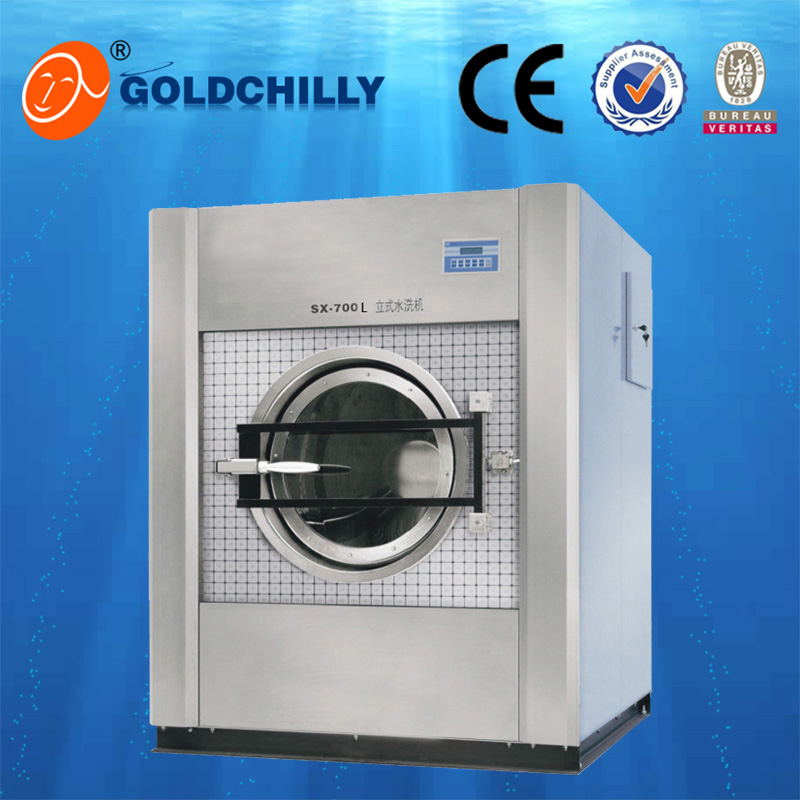

SX-L Series Vertical Washer
- Product Detail
industrial washing machine is suitable for washing cotton, wool, chemical fiber, silk fabrics and other clothing. Watermill washing machine can be used for garment factory washed jeans and silk clothing. The washing equipment for hotels, restaurants, hospitals, schools, factories, and other fields to meet the requirements of large capacity laundry.
|
Specification |
Unit |
SX-350L |
SX-500L |
SX-700L |
SX-1000L |
SX-1500L |
|
Rated Capacity |
Kg |
35 |
50 |
70 |
100 |
150 |
|
Drum |
rpm |
__ |
__ |
__ |
__ |
__ |
|
Diameter |
mm |
900 |
960 |
1200 |
1300 |
1440 |
|
Diameter Depth |
mm |
512 |
641 |
620 |
756 |
920 |
|
Washing Speed |
rpm |
40 |
35 |
32 |
32 |
30 |
|
Power Supply |
V/ P/ Hz |
380/3/50 |
380/3/50 |
380/3/50 |
380/3/50 |
380/3/50 |
|
Motor Power |
Kw |
1.5 |
1.5 |
2.2 |
4 |
5.5 |
|
Heating Type |
__ |
Steam heating |
Steam heating |
Steam heating |
Steam heating |
Steam heating |
|
Steam Pipe Diameter |
inch |
G3/4" |
G3/4" |
G 1½" |
G 1½" |
G 1½" |
|
Steam Pressure |
MPa |
0.3-0.6 |
0.3-0.6 |
0.3-0.6 |
0.3-0.6 |
0.3-0.6 |
|
Cool/Hot Water Pipe |
Inch |
G 1¼" |
G 1¼" |
G 1½" |
G 1½" |
G 2" |
|
Tap Water Pressure |
MPa |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
|
Drainage |
inch |
G2" |
G2" |
G2" |
G 3" |
G 3" |
|
Noise |
db(A) |
≤78 |
≤78 |
≤78 |
≤78 |
≤78 |
|
Machine Weight |
Kg |
500 |
700 |
1000 |
1400 |
1800 |
|
Dimension (W×D×H) |
mm |
1180*1280 *1520 |
1270*1440 *1600 |
1528*1515 *1860 |
1740*1825 *1820 |
1880*1984 *2000 |
